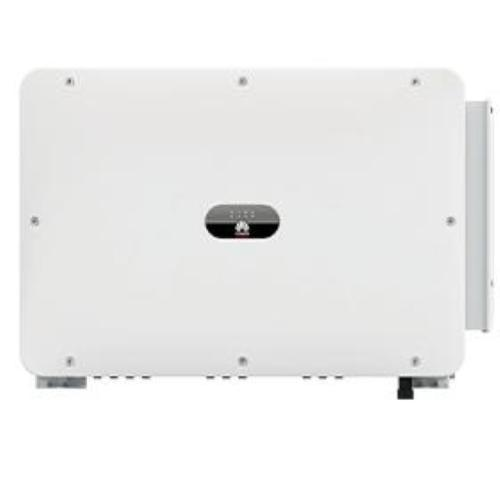

HUAWEI SUN2000-100KTL-M2 INVERTER TRIFASE 100.000W 100KW

Technical Specification SUN2000-100KTL-M2

Efficiency
Max. efficiency 98.6% @ 400 V, 98.8% @ 480 V
European efficiency 98.4% @ 400 V, 98.6% @ 480 V

Input
Max. Input Voltage 1 1,100 V
Max. Current per MPPT 30 A
Max. Current per Input 3 20 A
Max. Short Circuit Current per MPPT 40 A
Start Voltage 200 V
MPPT Operating Voltage Range 2 200 V ~ 1,000 V
Nominal Input Voltage 600 V @ 400 Vac, 720 V @ 480 Vac
Number of MPP trackers 10
Max. input number per MPP tracker 2

Output
Nominal AC Active Power 100,000 W
Max. AC Apparent Power 110,000 VA
Max. AC Active Power (cosf=1) 110,000 W
Nominal Output Voltage 380 V/ 400 V/ 480 V, 3W+(N)+PE
Rated AC Grid Frequency 50 Hz / 60 Hz
Nominal Output Current 144.4 A @ 400 V, 120.3 A @ 480 V
Max. Output Current 160.4 A @ 400 V, 133.7 A @ 480 V
Adjustable Power Factor Range 0.8 leading... 0.8 lagging
Max. Total Harmonic Distortion < 3%

Protection
Input-side Disconnection Device Yes
Anti-islanding Protection Yes
AC Overcurrent Protection Yes
DC Reverse-polarity Protection Yes
PV-array String Fault Monitoring Yes
DC Surge Arrester Type II
AC Surge Arrester Type II
DC Insulation Resistance Detection Yes
Residual Current Monitoring Unit Yes
Arc Fault Protection Yes
Smart String Level Disconnector Yes

Communication
Display LED indicators; WLAN adaptor + FusionSolar APP
RS485 Yes
USB Yes
Smart Dongle-4G Smart Dongle – 4G / WLAN (Optional)
Monitoring BUS (MBUS) Yes (isolation transformer required)

General Data
Dimensions (W x H x D) 1,035 x 700 x 365 mm
Weight (with mounting plate) 93 kg
Operating Temperature Range -25°C ~ 60°C
Cooling Method Smart Air Cooling
Max. Operating Altitude 4,000 m (13,123 ft.)
Relative Humidity 0 ~ 100%
DC Connector Amphenol Helios H4
AC Connector Waterproof Connector + OT/DT Terminal
Protection Degree IP66
Topology Transformerless
Nighttime Power Consumption < 3.5 W

Standard Compliance (more available upon request)
Certificate EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 61727, IEC 60068, IEC 61683
Grid Connection Standards VDE-AR-N4105, EN 50549-1, EN 50549-2, RD 661, RD 1699, C10/11
